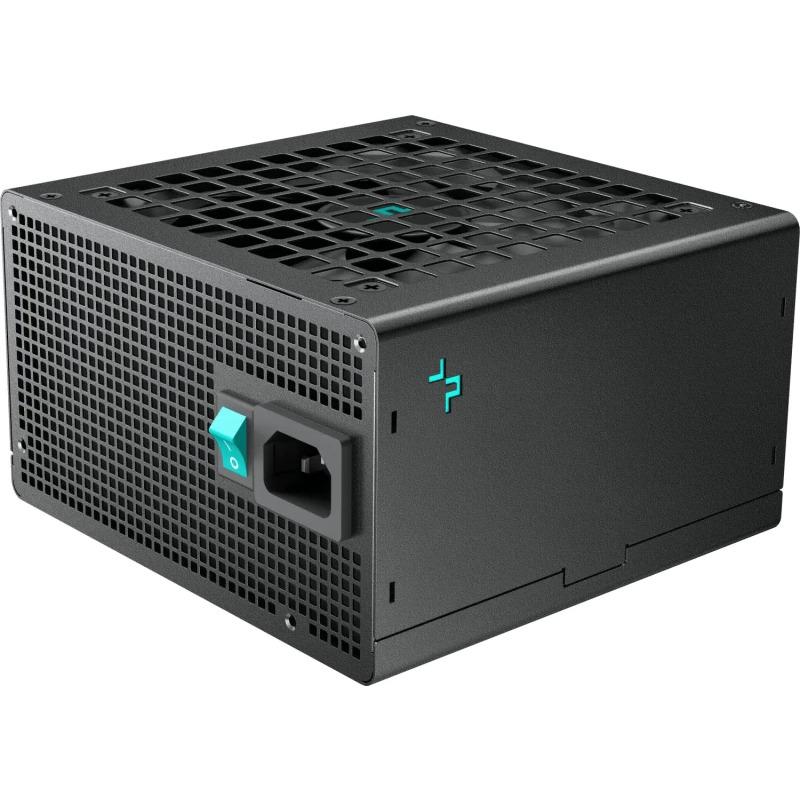

Sursa DEEPCOOL PL650D V2 650W 80 PLUS Bronze, Active PFC+DC to DC, Eficienta 85% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Specificatii
| PSU Type |
ATX |
|---|---|
| Country of origin |
China |
| AC input frequency |
50 – 60 Hz |
| Depth |
140 mm |
| Number of fans |
1 fan(s) |
| On/off switch |
Yes |
| Purpose |
PC |
| 80 PLUS certification |
80 PLUS Bronze |
| Compliance certificates |
RoHS, WEEE |
| Fan diameter |
12 cm |
| Height |
86 mm |
| Width |
150 mm |
| Mean time between failures (MTBF) |
100000 h |
| Conectivitate |
Non Modular |
| Iluminare RGB |
Nu |
| Certificare 80 Plus |
80 PLUS Bronze |
| Modular |
Yes |
| Total power |
650 W |
| Combined power (+3.3V) |
100 W |
| Combined power (+5V) |
100 W |
| Combined power (+12V) |
3.6 W |
| Max output current (+12V) |
0.3 A |
| Motherboard power connector |
20+4 pin ATX |
| Motherboard power cable length |
55 cm |
| Number of SATA power connectors |
6 |
| CPU power connector (4+4 pin) |
Yes |
| ATX power connector (20+4 pin) |
Yes |
| Cabling type |
Non-Modular |
| Power supply unit (PSU) form factor |
ATX |
| Fan location |
Top |
| Combined power (+5Vsb) |
15 W |
| Max output current (+5Vsb) |
3 A |
| ATX version |
3.0 |
| Power Factor Correction (PFC) type |
Active |
| Max output current (+3.3V) |
20 A |
| Max output current (+5V) |
20 A |
| PCI Express power connectors (8-pin) |
1 |
| Peripheral (Molex) power connectors (4-pin) |
2 |
| Hold time |
16 ms |
| Power Good signal delay range |
100 – 150 ms |
| Bearing technology |
HYB |
| Sustainability certificates |
ErP, Triman |
| Certification |
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH |
| Input current |
9 – 4.5 A |
| SATA power cable length |
550,450,650 mm |
| Efficiency |
80Plus-Bronze |
| PSU-Power |
650 W |
| PFC |
Active |
| Producator |
DEEPCOOL |
| Garantie |
60 |
