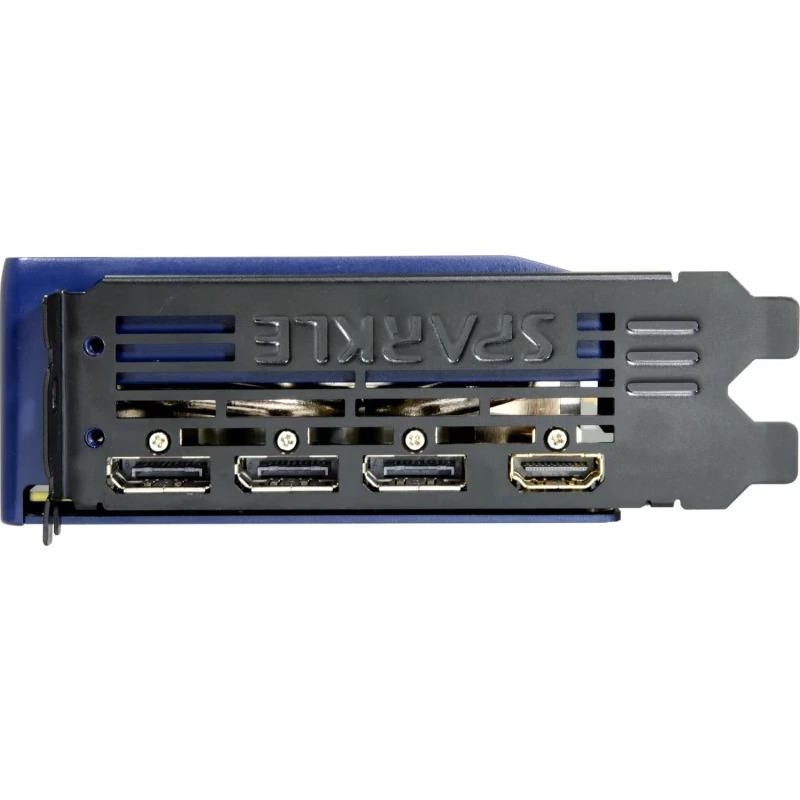

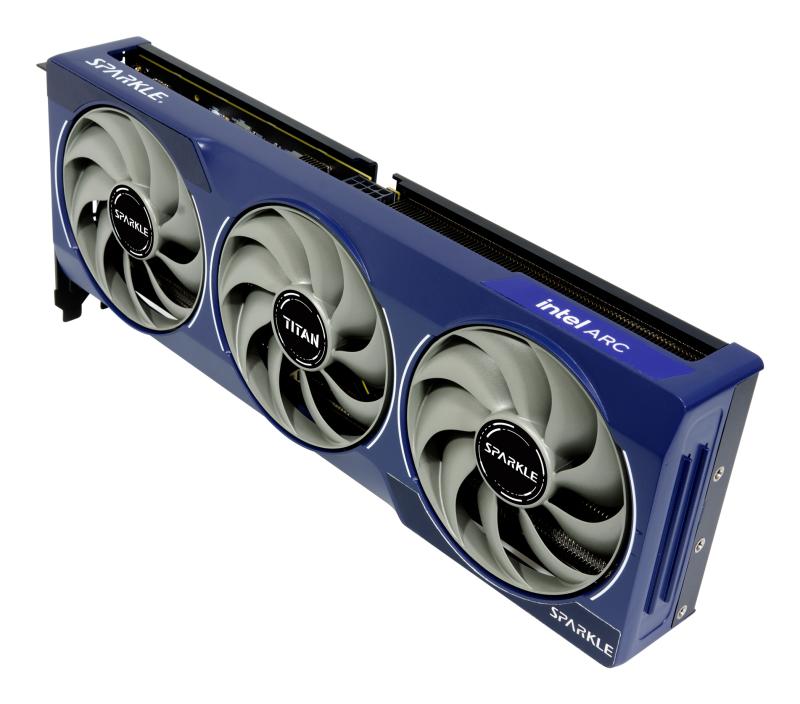

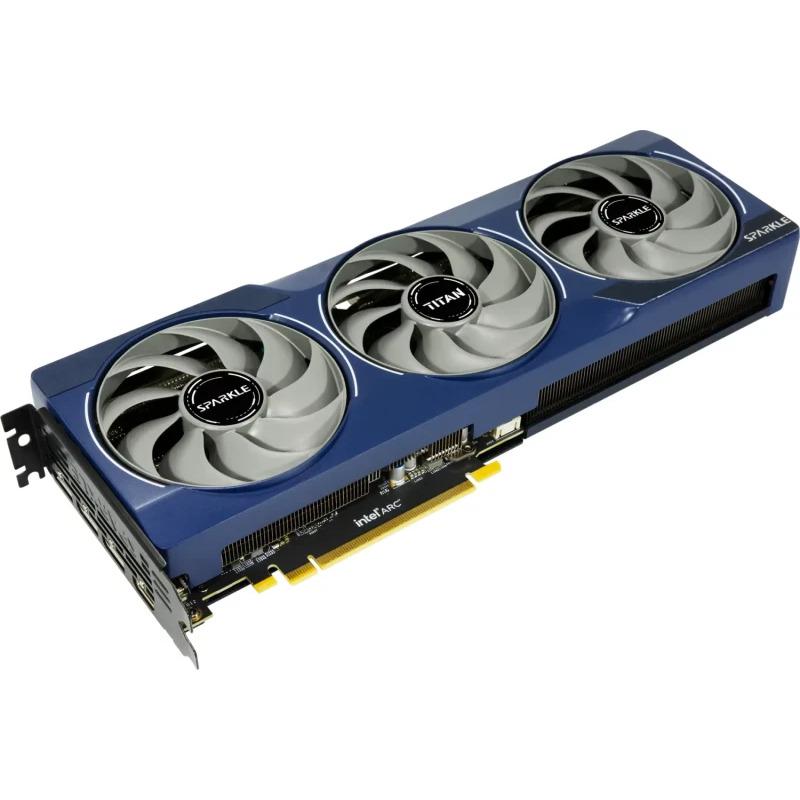

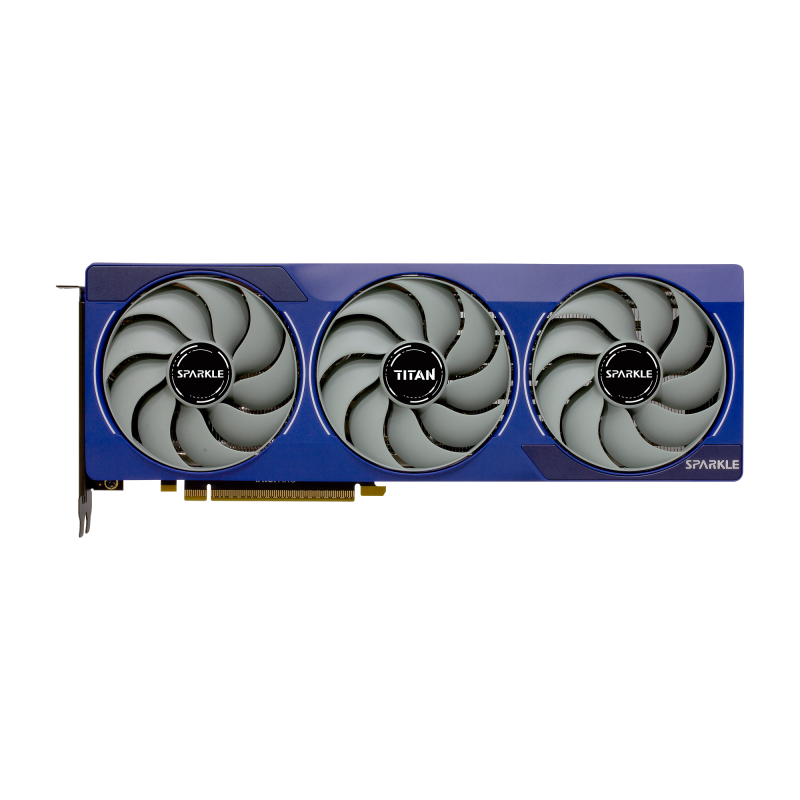

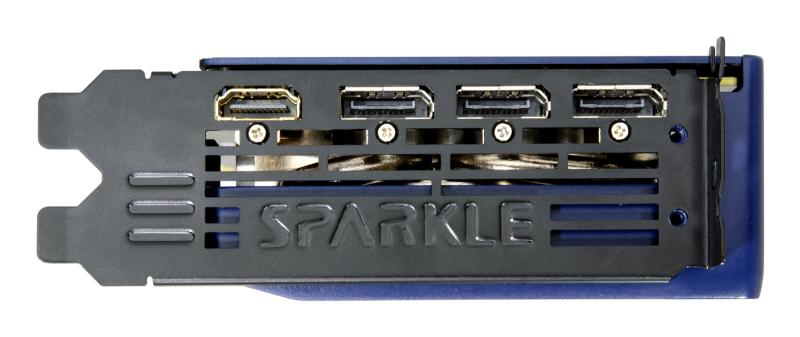

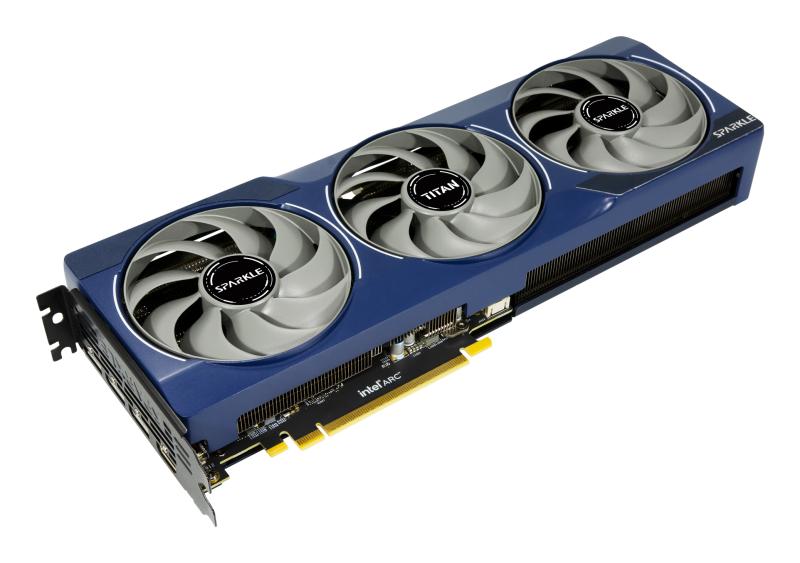

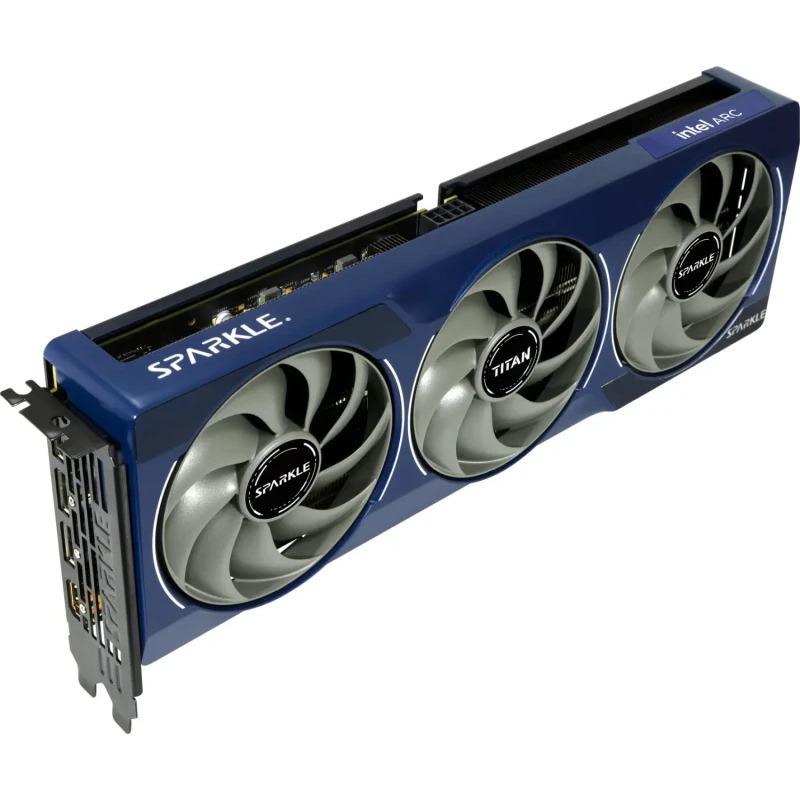

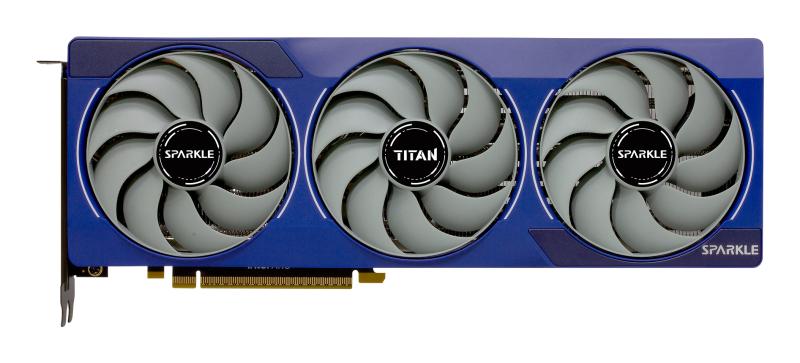

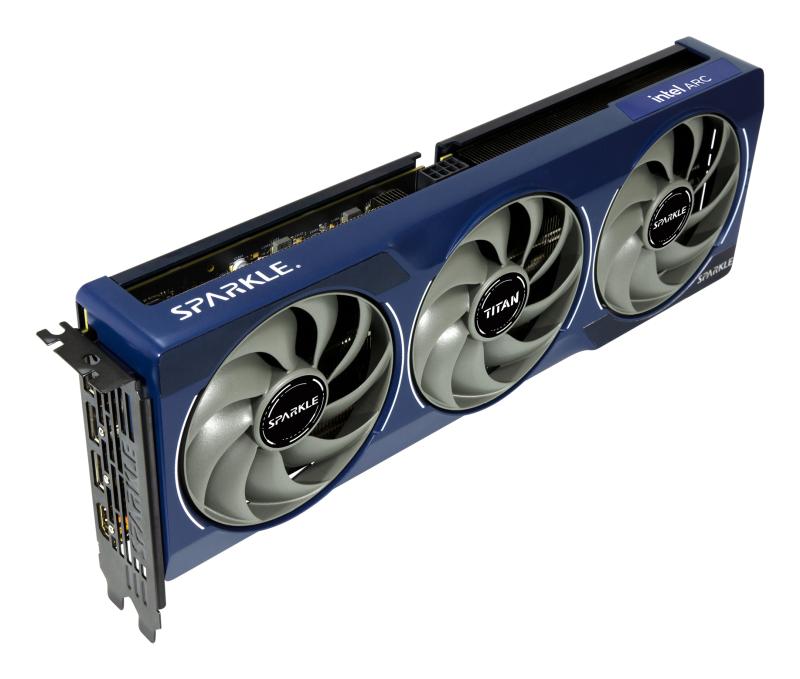

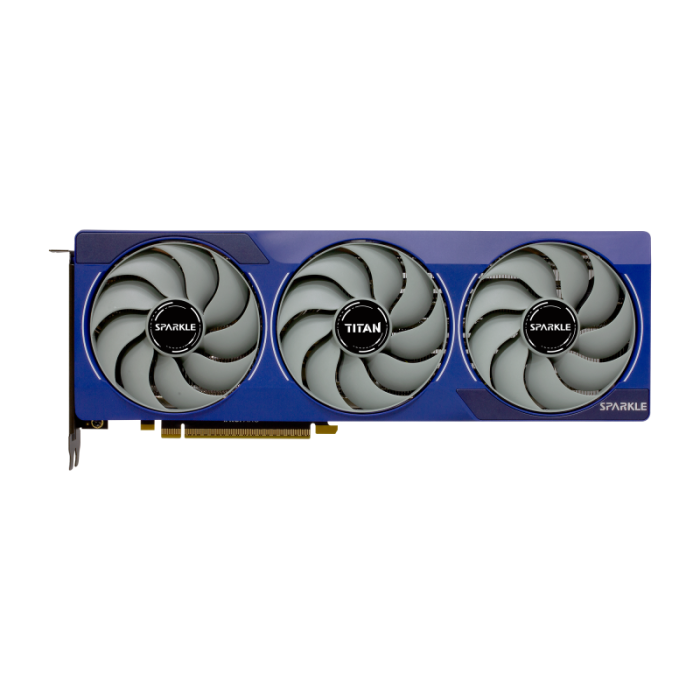

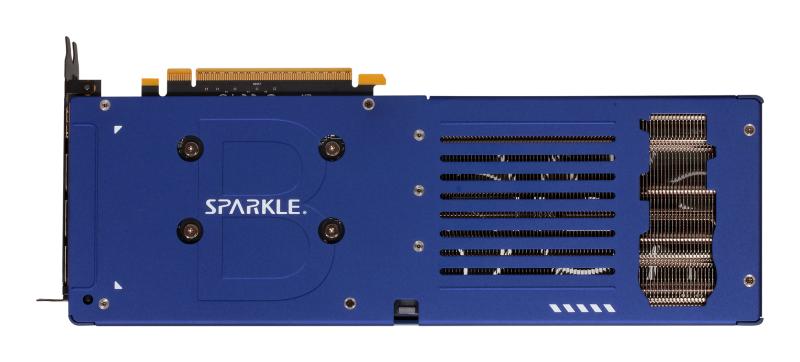

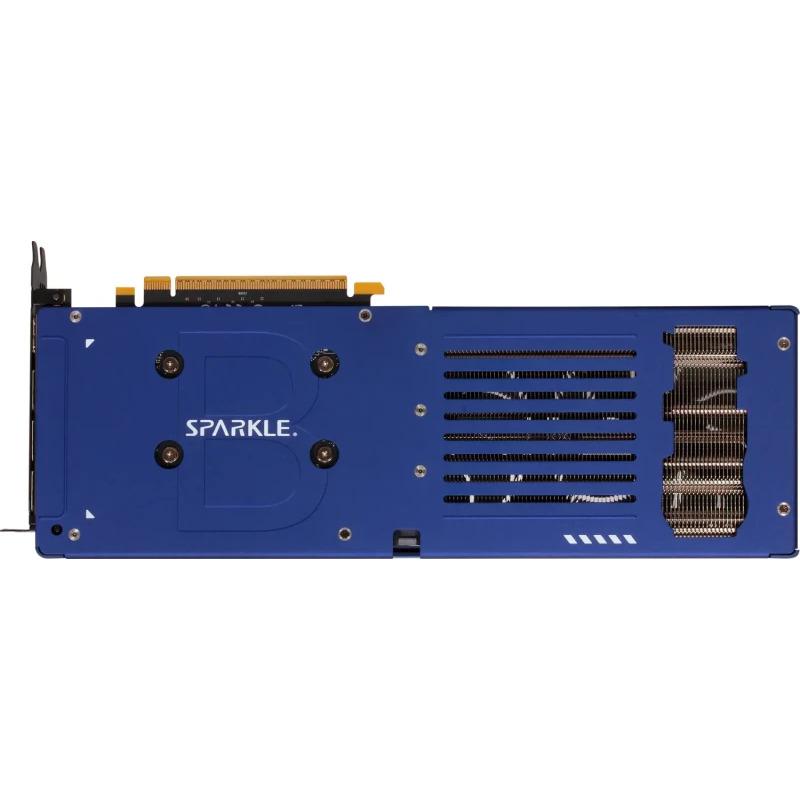

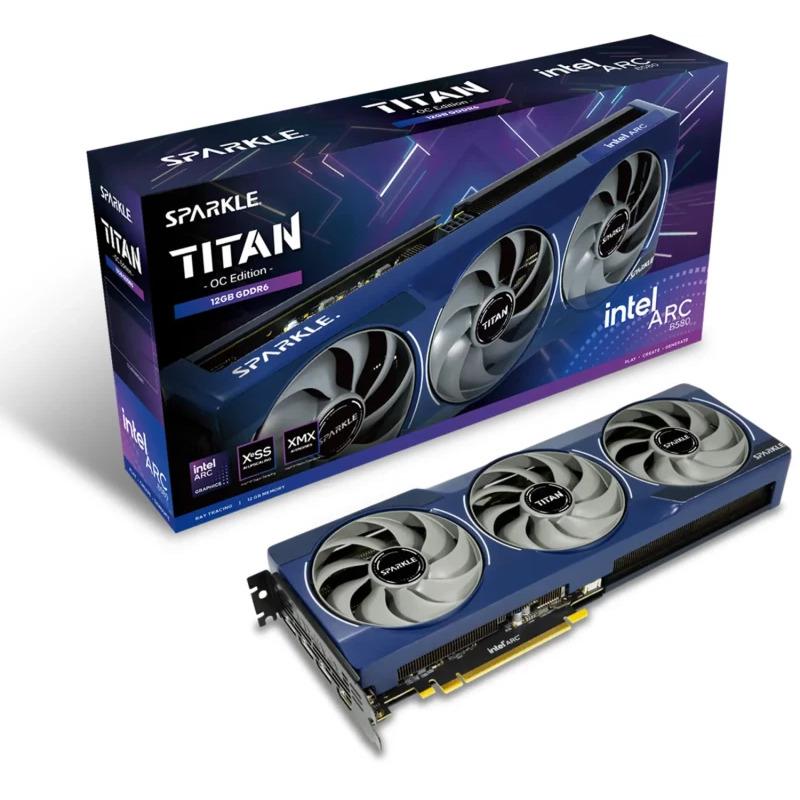

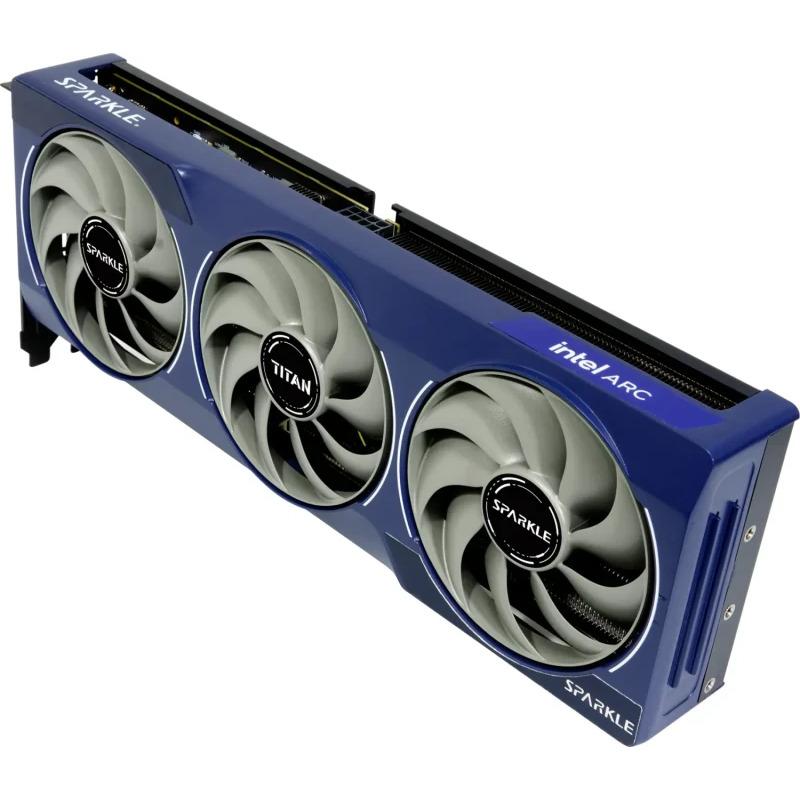

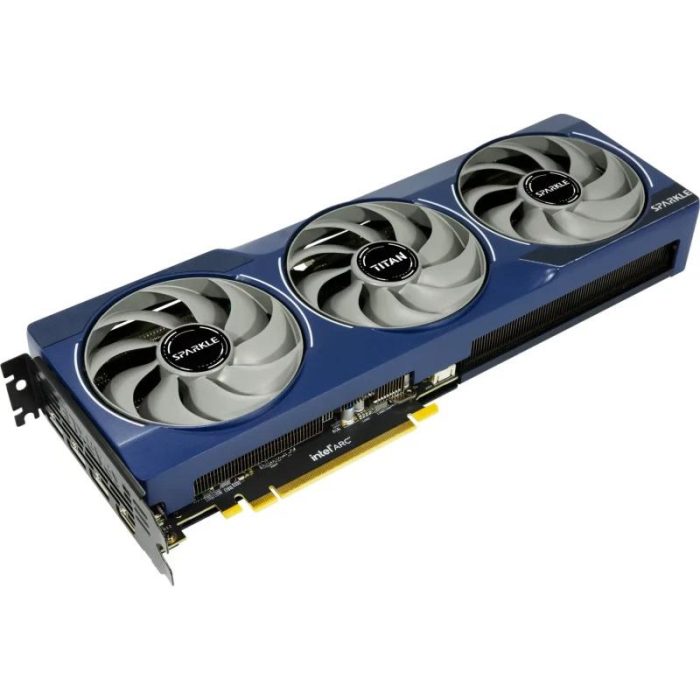

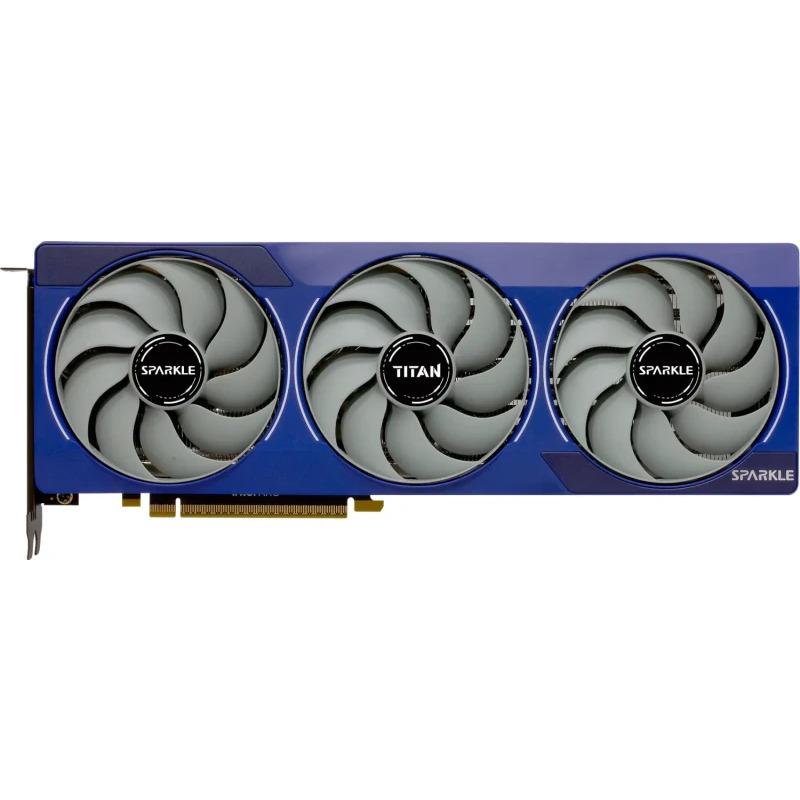

Placa Video INTEL SPARKLE Arc B580 TITAN OC, 12GB GDDR6 192 bit, PCIE 4.0, 1x HDMI 3x DP
Specificatii
| LP-Bracket |
No |
|---|---|
| VGA-Interface |
PCI-E-4.0 |
| Package type |
Box |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Product colour |
Blue |
| Cooling type |
Active |
| Depth |
44 mm |
| Height |
117 mm |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Discrete graphics card memory |
12 GB |
| DisplayPorts quantity |
3 |
| TV tuner integrated |
No |
| Power consumption (typical) |
200 W |
| DisplayPort version |
2.1 |
| Tip memorie video |
GDDR6 |
| HDMI |
1 |
| MiniDP |
N/A |
| Segment |
Consumer |
| Maximum resolution |
7680 x 4320 pixels |
| Parallel processing technology support |
Not supported |
| Graphics card memory type |
GDDR6 |
| Interface type |
PCI Express x8 4.0 |
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| Dual Link DVI |
No |
| Maximum displays per videocard |
4 |
| Number of fans |
3 fan(s) |
| Supplementary power connectors |
1x 8-pin |
| CUDA |
No |
| Minimum system power supply |
600 W |
| Slot |
PCI Express 4.0 |
| Tip Memorie |
GDDR6 |
| Sistem racire |
N/A |
| Recomandat pentru Gaming |
Da |
| Graphics processor family |
Intel |
| OpenCL version |
3.0 |
| Alimentare separata |
N/A |
| Seria |
Intel Arc 3 |
| Numar Sloturi |
N/A |
| Model |
Intel Arc B580 |
| Bus Memorie |
192bit |
| Capacitate |
12GB |
| Number of slots |
2.2 |
| Graphics processor |
Arc B580 |
| Processor frequency |
2740 MHz |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines |
160 |
| Cooling |
Active |
| VGA-Format |
Full-profile |
| VGA-Segment |
Consumer |
| Memory BUS |
192bit |
| Memory-Capacity |
12288MB |
| Chipset |
Intel |
| Ray accelerators |
20 |
| Memory bandwidth (max) |
456 GB/s |
| Xe-cores |
20 |
| NPU performance up to |
233 TOPs |
| Power supply location |
Top |
| Minimum system requirements |
PCI-Express compliant MB with one x16 PCIe slot |
| Minimum RAM |
8000 MB |
| Weight |
954 g |
| Length |
315 mm |
| Producator |
SPARKLE |
| Garantie |
36 |
