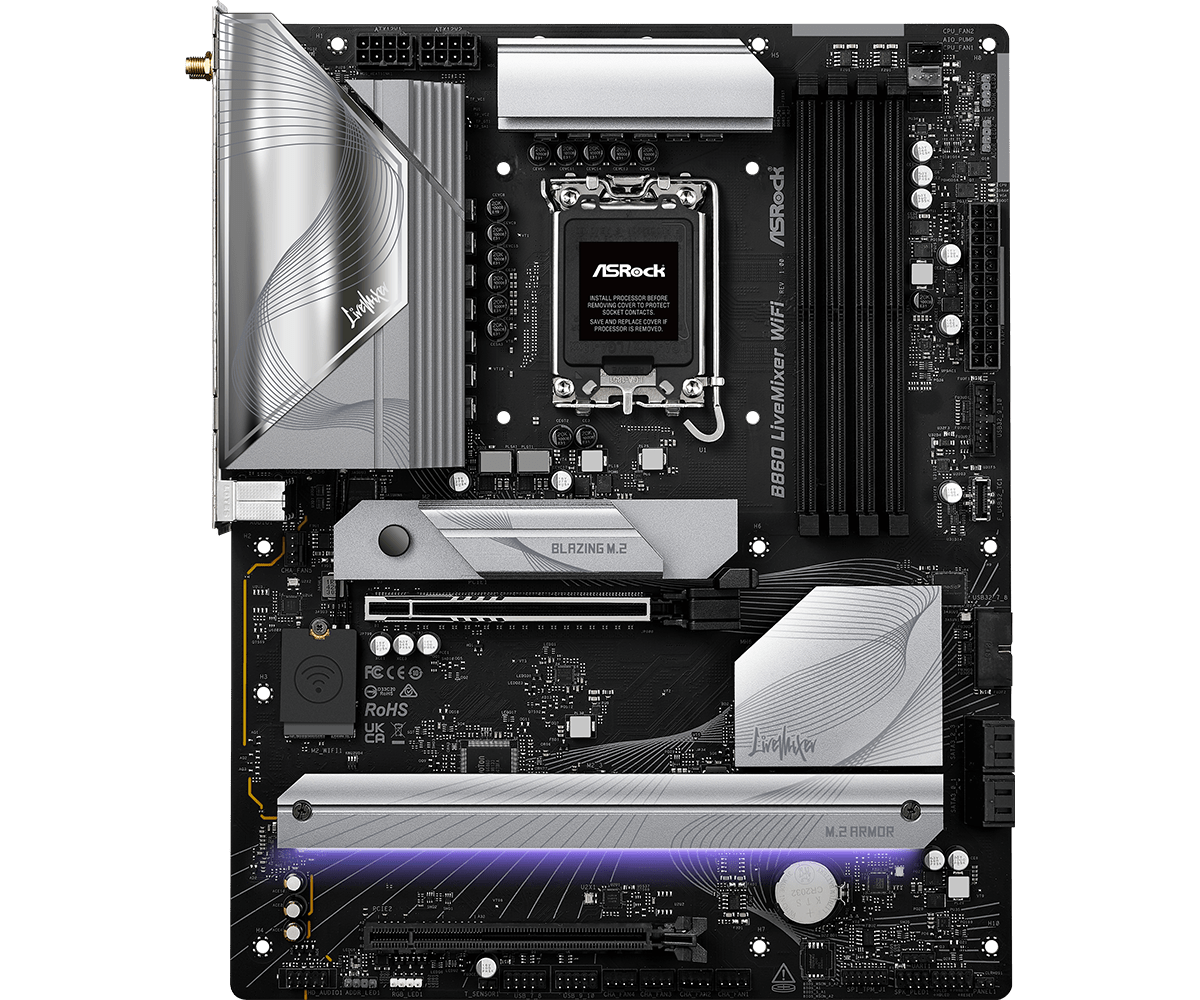

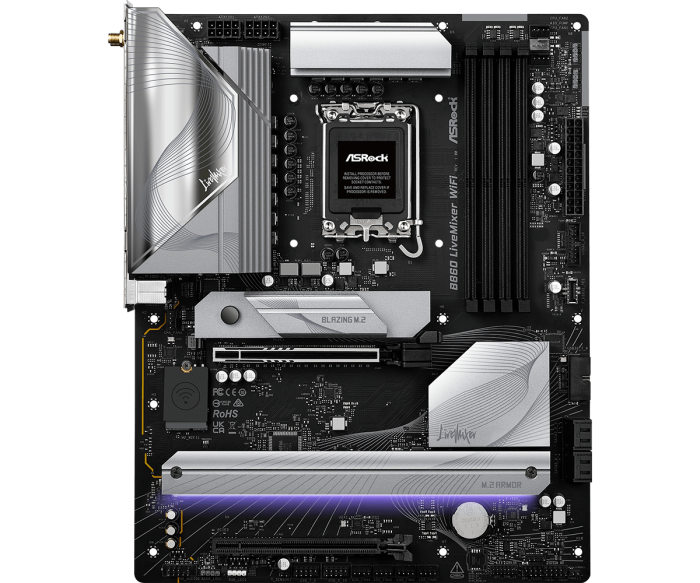

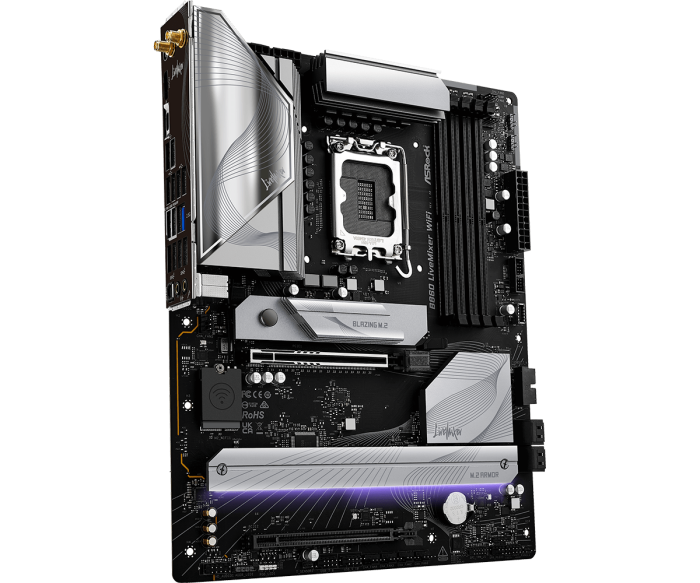

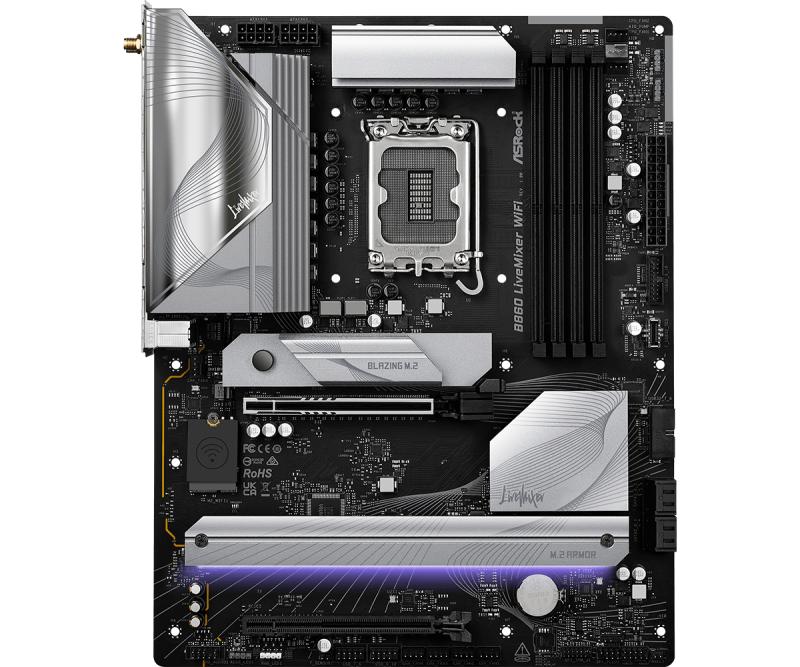

Placa de Baza ASROCK B860 LIVEMIXER WIFI LGA1851, 4x DDR5, 1x HDMI 1x Intel Thunderbolt, 2x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX
Specificatii
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
HDMI |
| Wi-Fi |
Yes |
| USB3 |
4-8 |
| Onboard-CPU |
No |
| Product colour |
Black |
| RAID support |
Yes |
| Component for |
PC |
| USB connector type |
USB Type-A, USB Type-C |
| Memory channels |
Dual-channel |
| Processor manufacturer |
Intel |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI version |
2.1 |
| Bluetooth version |
5.3 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Width |
305 mm |
| Depth |
244 mm |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| Audio output channels |
7.1 channels |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Supported storage drive types |
HDD & SSD |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
6 |
| S/PDIF out port |
Yes |
| HDCP |
Yes |
| VGA (D-Sub) ports quantity |
0 |
| Maximum resolution |
7680 x 4320 pixels |
| Parallel processing technology support |
Not supported |
| DVI-D ports quantity |
0 |
| Model Chipset |
B860 |
| Gaming |
Nu |
| Format |
ATX |
| Soclu Procesor |
Socket 1851 |
| Tip Memorie |
DDR5 |
| Numar sloturi memorie |
4 |
| Memorie maxima |
256 GB |
| Tip slot interfata grafica |
PCIe 5.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Da |
| BLUETOOTH |
Da |
| USB Type-C |
Da |
| HDMI |
Da |
| Thunderbolt |
Da |
| Sloturi M.2 |
4 |
| RJ-45 LAN |
1 |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Unbuffered memory |
Yes |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Processor socket |
LGA 1851 (Socket V1) |
| Supported processor sockets |
LGA 1851 |
| Supported memory types |
DDR5-SDRAM |
| Maximum internal memory |
256 GB |
| Number of storage drives supported |
7 |
| RAID levels |
0, 1, 5, 10 |
| Number of CPU fan connectors |
2 |
| Number of EPS power connectors (8-pin) |
2 |
| TPM connector |
Yes |
| RGB LED pin header |
Yes |
| WiFi-AP antenna jack |
2 |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel B860 |
| Windows operating systems supported |
Windows 11 x64 |
| Number of M.2 (M) slots |
3 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 2nd M.2 highest PCI Express generation |
4.0 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| Antenna included |
Yes |
| 12V power connector |
Yes |
| Cables included |
SATA |
| ECC сompatibility |
Non-ECC |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
3 |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Number of chassis fan connectors |
5 |
| Supported storage drive interfaces |
PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of RGB LED pin headers |
1 |
| LAN controller |
Dragon RTL8125BG |
| Certification |
FCC, CE, ErP/EuP |
| 1st M.2 largest key size |
2280 |
| 2nd M.2 largest key size |
2280 |
| 3rd M.2 largest key size |
2280 |
| Audio Chip |
Realtek ALC1220 |
| USB 2.0 ports quantity |
6 |
| Number of water pump connectors |
1 |
| Thunderbolt ports quantity |
1 |
| MB-Format |
ATX |
| PCI-Ex1 |
0 |
| RAM-Slots |
4 |
| MB-Socket |
AM5 |
| PCI-Ex16 |
2 |
| Producator |
ASROCK |
| Garantie |
36 |
