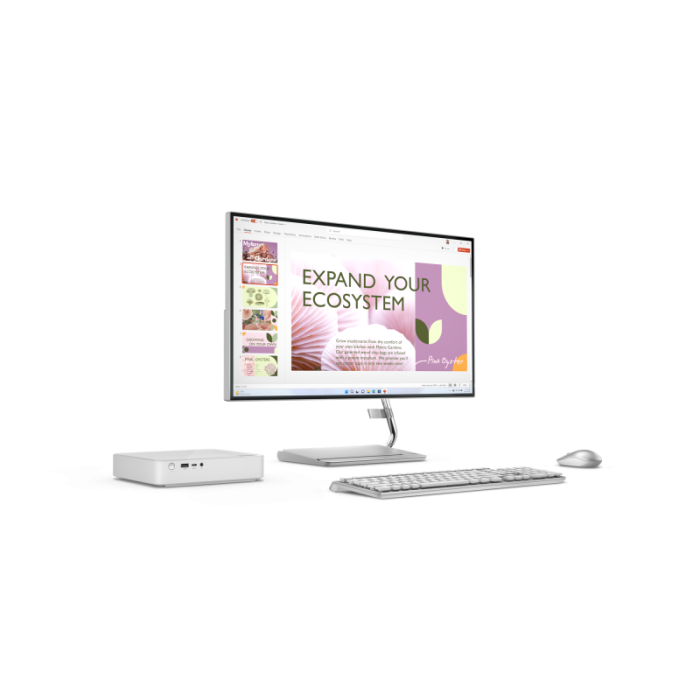

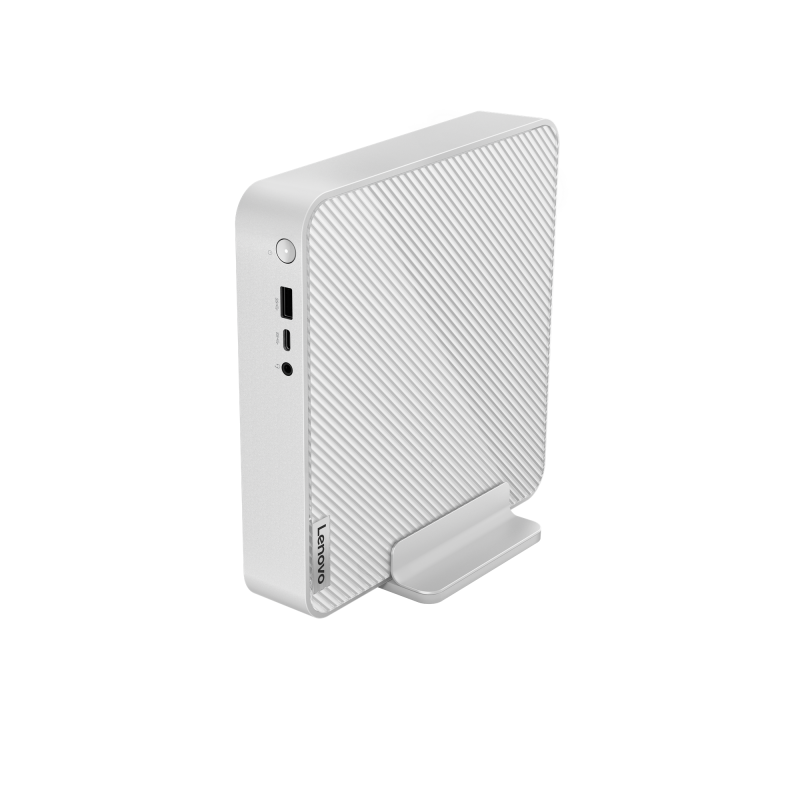

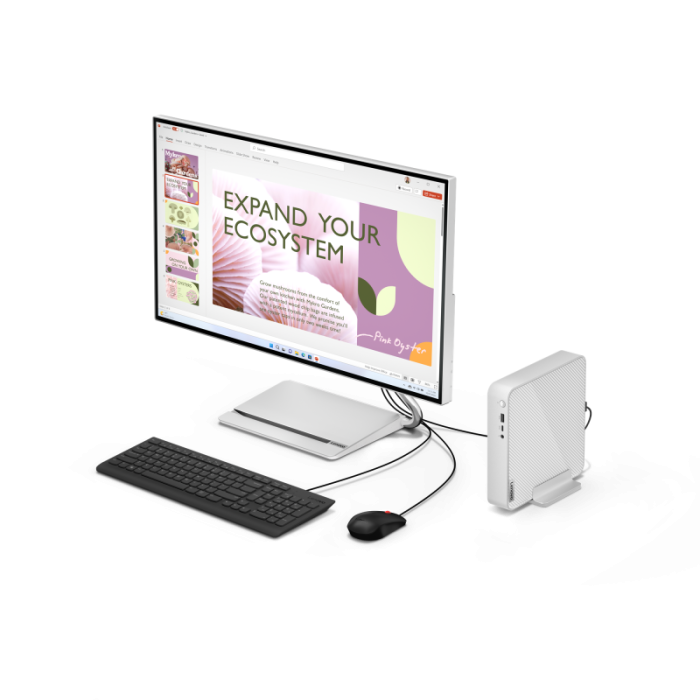

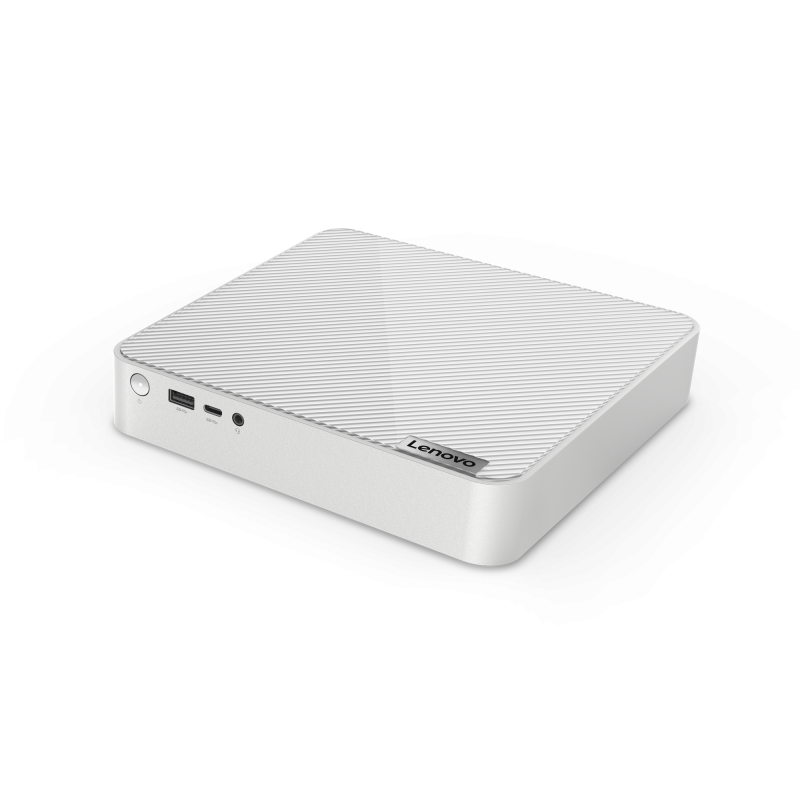

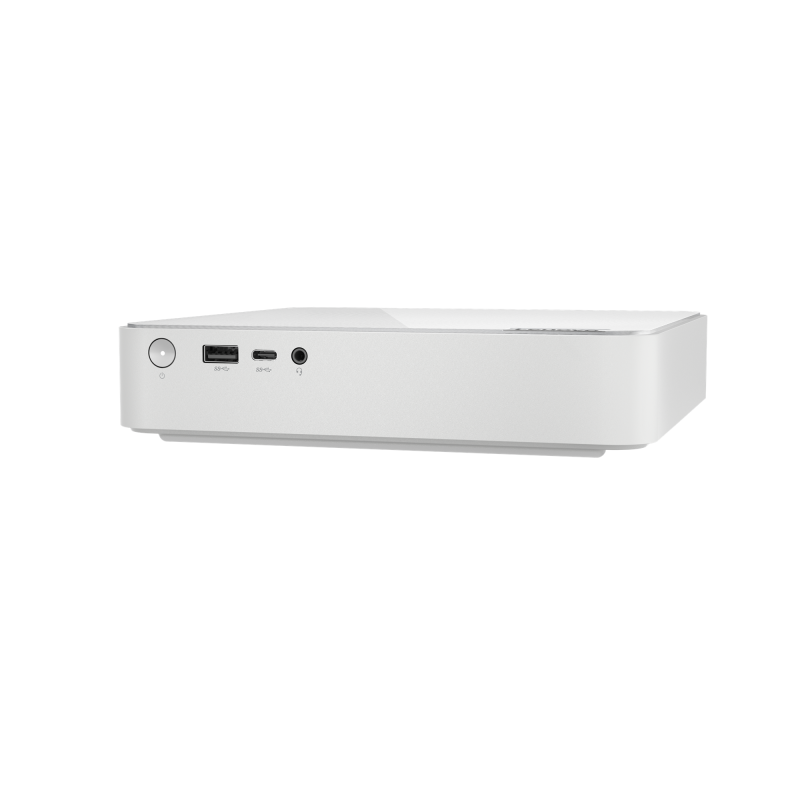

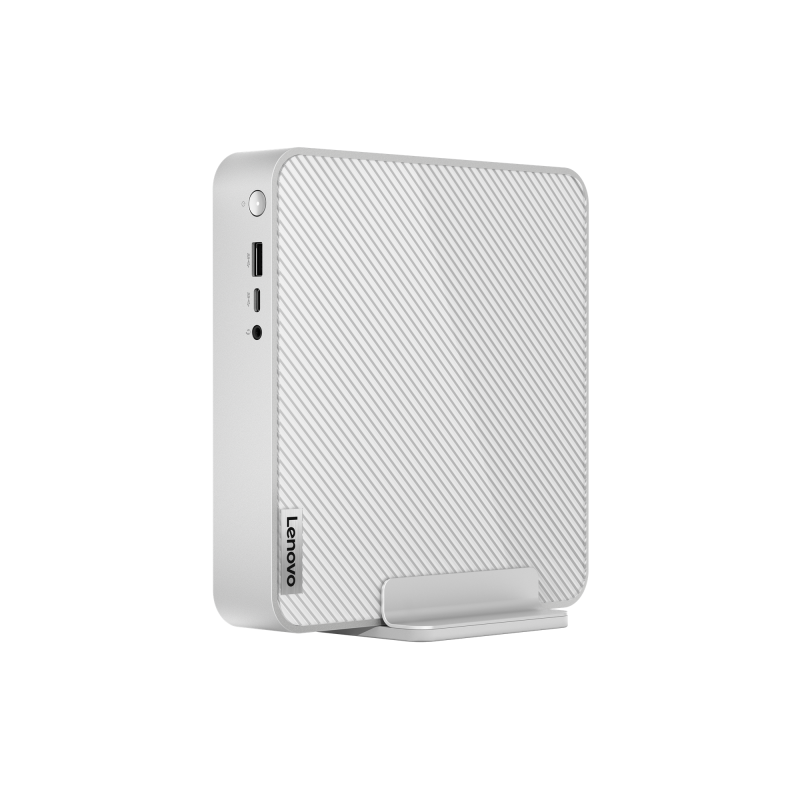

Desktop Lenovo IdeaCentre Mini 01IRH8 , Intel® Core™ i5-13420H, 8C (4P + 4E) / 12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB, video Integrated Intel® UHD Graphics, RAM 1x 16GB SO-DIMM DDR4-3200, SSD 512GB SSD M.2 2280 PCIe® 4.0×4 NVMe®, no ODD, no Card Reader, , 2.5GbE RTL8125BGS, Wi-Fi® 6, 802.11ax 2×2, Bluetooth 5.2, Porturi: Rear: 1x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer and DP 1.4); 1x USB 2.0; 2x USB 3.2 Gen 2; 1x HDMI® 2.1 TMDS; 1x DisplayPort™ 1.4; 1x Ethernet (2.5GbE RJ-45); 1x power connector; Left: 1x USB-C® 3.2 Gen 2; 1x USB 3.2 Gen 2; 1x headphone / microphone combo jack (3.5mm), 150W 92%, Firmware TPM 2.0 integrated in processor, None, None, No speakers, None, Cloud Grey, greutate 1.8 kg, dimensiuni 191.4 x 195 x 39mm , 2-year, Courier or Carry-in, Free DOS, Green Certifications: ENERGY STAR® 8.0; ErP Lot 3/7; RoHS compliant
Specificatii
| Capacity-HDD |
no-HDD |
|---|---|
| Capacity-SSD |
512GB |
| Microsoft-OS |
No |
| Video |
Onboard |
| HDD-or-SSD |
SSD |
| RAM |
16GB |
| Destinat pentru |
Consumer |
| Graphics |
Integrated Intel® UHD Graphics |
| Chipset |
Intel® SoC Platform |
| Optical |
None |
| Bundled software |
None |
| WLAN + Bluetooth |
Wi-Fi® 6, 802.11ax 2×2 + BT5.2 |
| Included Upgrade |
None |
| Operating System |
None |
| Case Color |
Cloud Grey |
| Memory slots |
Two DDR4 SO-DIMM slots, dual-channel capable |
| Memory |
1x 16GB SO-DIMM DDR4-3200 |
| Card Reader |
None |
| Base Warranty |
2-year, Courier or Carry-in |
| Green Certifications |
ENERGY STAR® 8.0 |
| Pen |
Pen Not Supported |
| WWAN |
Non-WWAN |
| Keyboard |
None |
| Storage |
512GB SSD M.2 2280 PCIe® 4.0×4 NVMe® |
| Optane Memory |
None |
| System Management |
None |
| Security Chip |
Firmware TPM 2.0 integrated in processor |
| Processor |
Intel® Core™ i5-13420H, 8C (4P + 4E) / 12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB |
| Expansion Slots |
Three M.2 slots (one for WLAN, two for SSD) |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC256 codec |
| Max Memory |
Up to 32GB DDR4-3200 |
| Form factor |
Tiny (1L) |
| Speakers |
No speakers |
| Power Supply |
150W 92% |
| Mouse |
None |
| System Fan |
2x default |

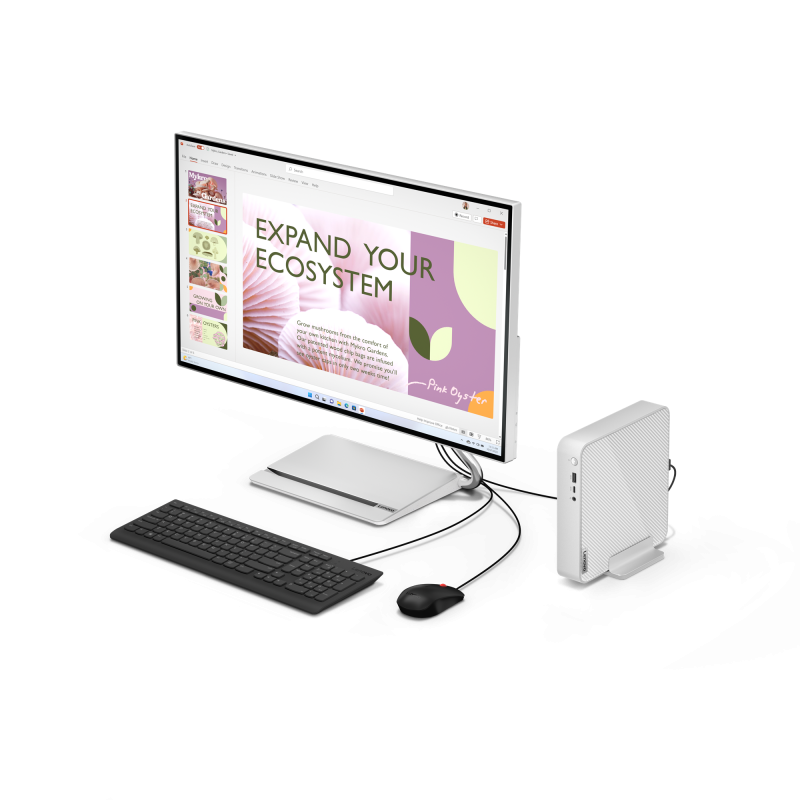

| Stand |
Stand |
| Dimensions (WxDxH) |
191.4 x 195 x 39mm (7.535 x 7.677 x 1.535 inches) |
| Weight |
Around 1.8 kg (3.97 lbs) |

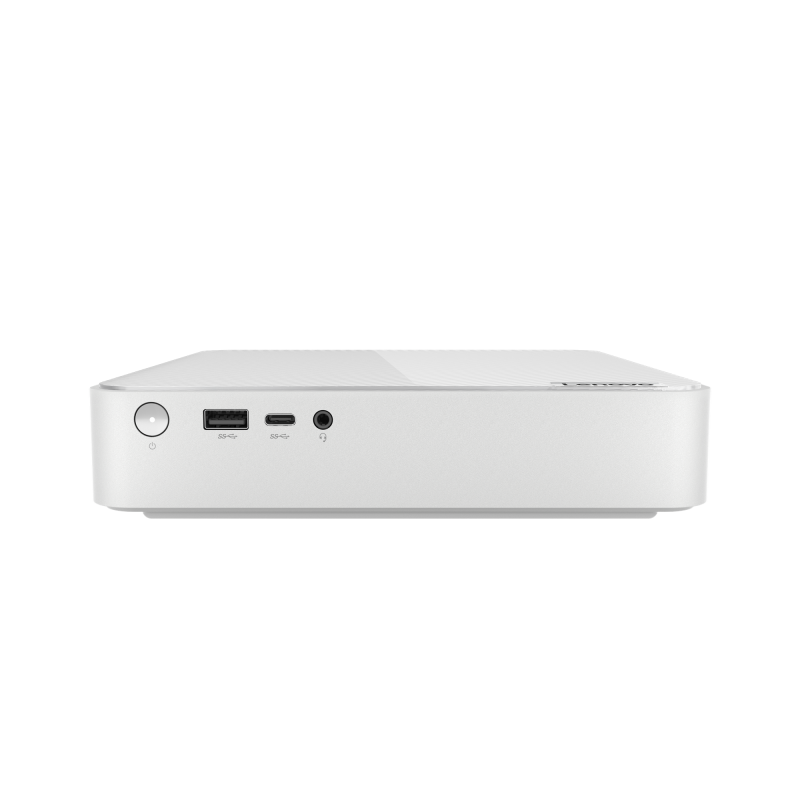

| Front Ports |
1x USB-C® 3.2 Gen 2 |

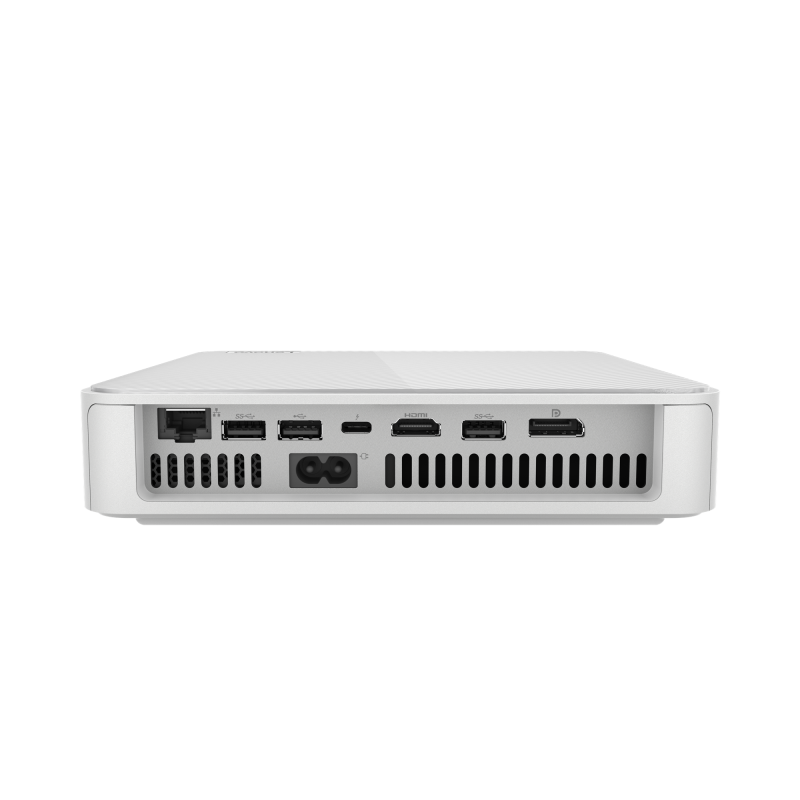

| Rear Ports |
1x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer and DP 1.4) |
| Ethernet |
2.5GbE RTL8125BGS |
| Producător procesor |
Intel |
| Placa video dedicata |
Integrata |
| Serie placa video |
Intel Integrated Graphics |
| Tip stocare |
SSD |
| Unitate Optica |
Nu |
| BLUETOOTH |
Da |
| Wireless |
Da |
| HDD |
None |
| SSD |
512GB |
| Tip RAM |
non-ECC |
| Tip |
DDR4 |
| Sloturi memorie |
2 |
| Memorie RAM |
16 GB |
| Sistem Operare Desktop PC |
Fara OS |
| Format desktop |
MiniPC |
| Tip procesor |
Intel Core i5 |
| DT-CPU |
Intel |
| Model procesor |
Intel-Core-i5 |
| DT-Format |
Mini Tower |
| Model placa video |
Intel UHD Graphics 630 |
| Storage Support |
Up to two drives, 2x M.2 SSD • M.2 SSD up to 1TB each |
| Producator |
LENOVO |
| Garantie |
24 |
