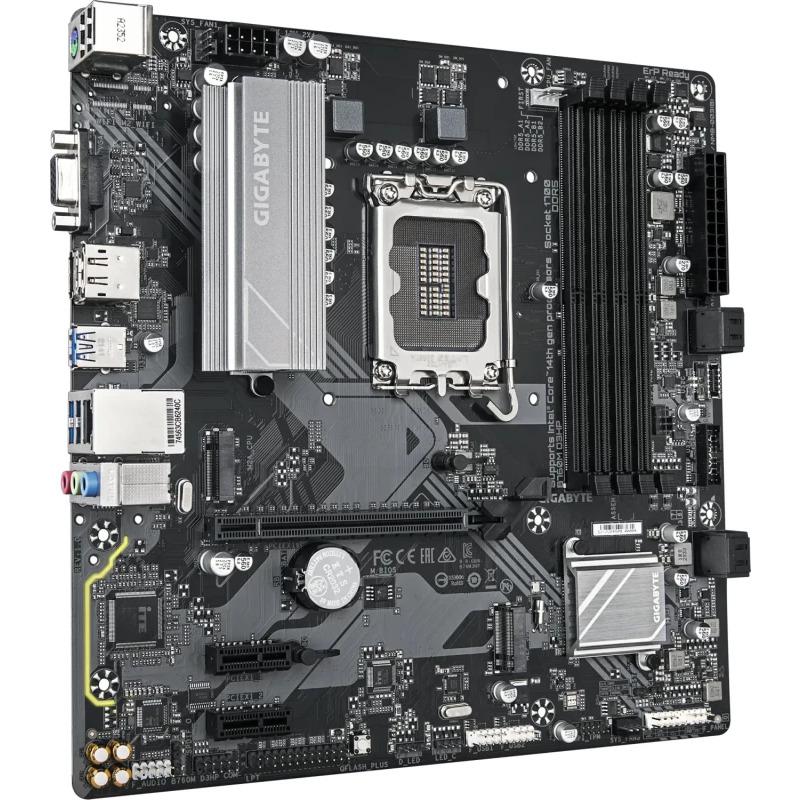

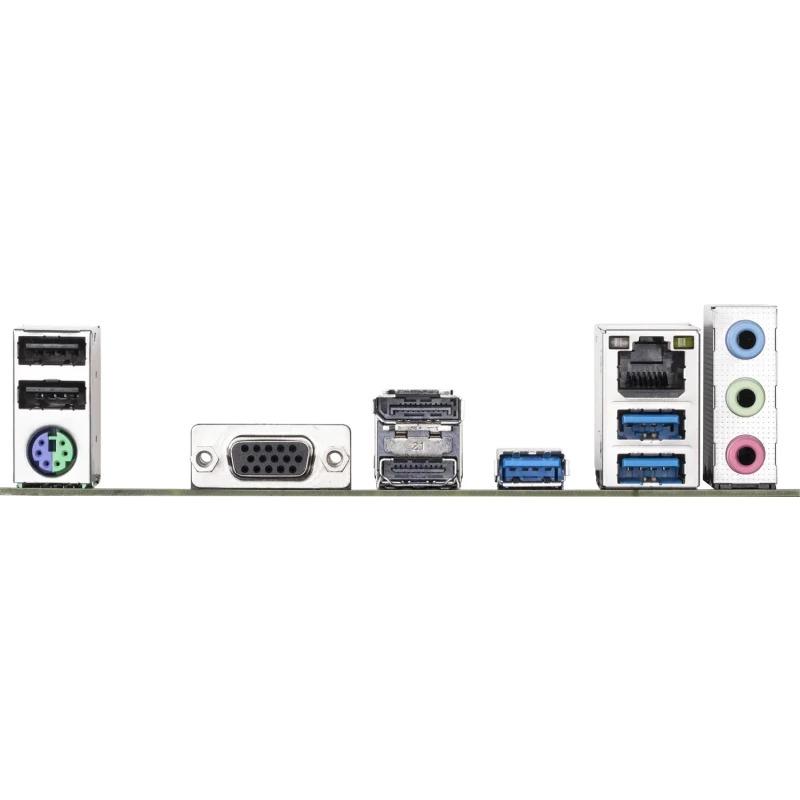

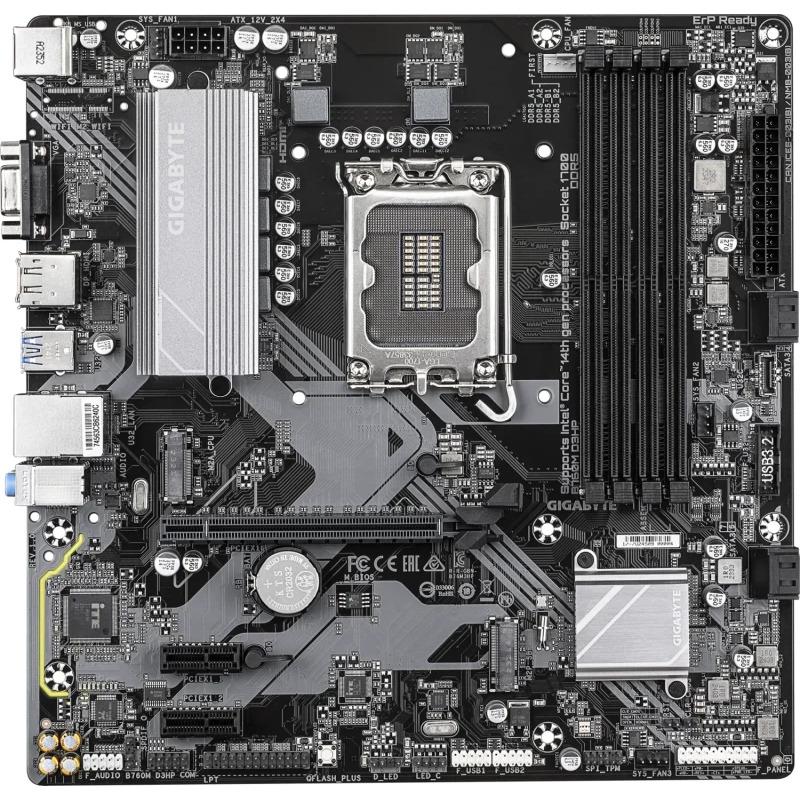

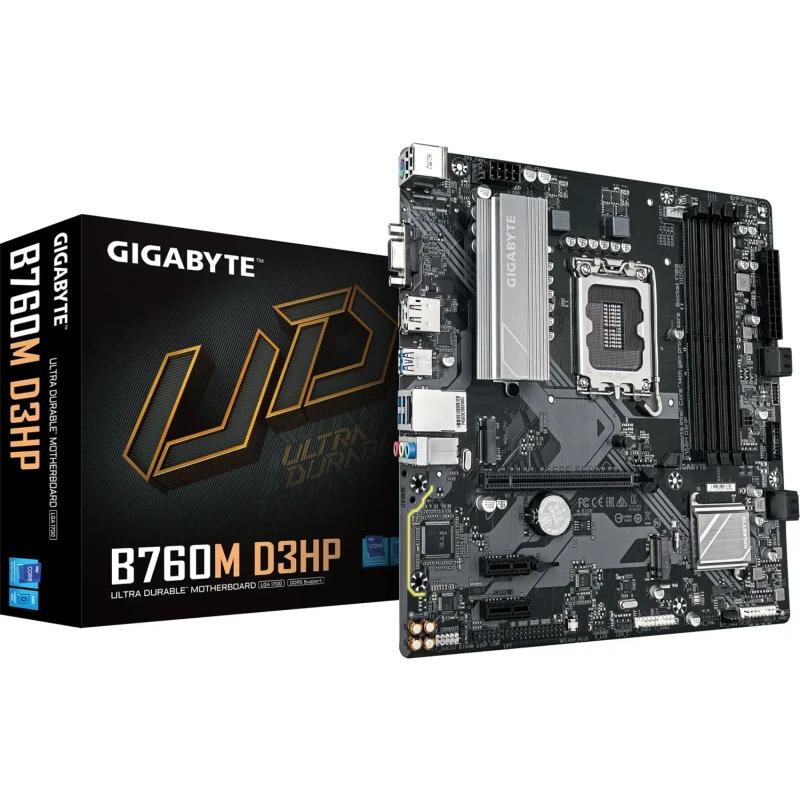

Placa de Baza GIGABYTE B760M D3HP LGA1700, 4x DDR5, 1x D-Sub 1x HDMI 1x DP, 1x PCIE 4.0 x16 2x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Specificatii
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
HDMI/DP |
| Wi-Fi |
No |
| USB3 |
4-8 |
| PCI-Ex16 |
1 |
| Onboard-CPU |
No |
| Weight |
720 g |
| RAID support |
Yes |
| Warranty period |
3 year(s) |
| Component for |
PC |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Ethernet interface type |
Gigabit Ethernet |
| Memory channels |
Dual-channel |
| Processor manufacturer |
Intel |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI version |
2.1 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| USB 2.0 ports quantity |
2 |
| Depth |
244 mm |
| Package weight |
1.21 kg |
| Products per shipping (inner) case |
1 pc(s) |
| Batteries included |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| Audio output channels |
7.1 channels |
| Line-in |
Yes |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Supported storage drive types |
HDD & SSD |
| LAN controller |
Realtek RTL8111H |
| Number of M.2 (M) slots |
2 |
| VGA (D-Sub) ports quantity |
1 |
| HDCP |
Yes |
| Screws included |
Yes |
| DisplayPort version |
1.2 |
| Product colour |
Brown |
| Package depth |
268 mm |
| DisplayPorts quantity |
1 |
| Parallel processing technology support |
Not supported |
| DVI-D ports quantity |
0 |
| DirectX version |
12.0 |
| Package height |
68 mm |
| Model Chipset |
B760 |
| Gaming |
Nu |
| Format |
Micro-ATX (mATX) |
| Soclu Procesor |
Socket 1700 |
| Tip Memorie |
DDR5 |
| Numar sloturi memorie |
4 |
| Memorie maxima |
256 GB |
| Tip slot interfata grafica |
PCIe 4.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Nu |
| BLUETOOTH |
Nu |
| USB Type-C |
Da |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
2 |
| RJ-45 LAN |
1 |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Unbuffered memory |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| PS/2 ports quantity |
1 |
| Motherboard form factor |
micro ATX |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Yes |
| Width |
244 mm |
| Supported memory types |
DDR5-SDRAM |
| Maximum internal memory |
256 GB |
| ECC сompatibility |
ECC & Non-ECC |
| Maximum internal memory per slot |
64 GB |
| Number of HDDs supported |
4 |
| RAID levels |
0, 1, 5, 10 |
| Front panel connector |
Yes |
| TPM connector |
Yes |
| RGB LED pin header |
Yes |
| Motherboard chipset family |
Intel |
| PC health monitoring |
Fan, Temperature, Voltage, Water cooling |
| Power source type |
ATX |
| 2nd M.2 highest PCI Express generation |
4.0 |
| ACPI version |
5.0 |
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
| Battery weight |
3 g |
| Lithium weight per battery |
0.07 g |
| Number of battery cells |
1 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Battery type |
CR2032 |
| Height |
35 mm |
| Processor socket |
LGA 1700 |
| Supported processor sockets |
LGA 1700 |
| Maximum resolution |
4096 x 2304 pixels |
| 12V power connector |
Yes |
| Number of storage drives supported |
6 |
| S/PDIF out connector |
Yes |
| BIOS memory size |
128 Mbit |
| Package width |
270 mm |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Serial port headers |
1 |
| Motherboard chipset |
Intel B760 Express |
| Bundled software |
Norton Internet Security |
| Number of chassis fan connectors |
3 |
| 1st M.2 largest key size |
2280 |
| 2nd M.2 largest key size |
2280 |
| Number of EPS power connectors (8-pin) |
1 |
| Number of CPU fan connectors |
1 |
| 1st M.2 highest PCI Express generation |
4.0 |
| Parallel connector |
Yes |
| Number of RGB LED pin headers |
2 |
| Supported memory clock speeds |
4400,4800,5200,5600 MHz |
| MB-Socket |
1700 |
| RAM-Slots |
4 |
| MB-Format |
micro-ATX |
| PCI-Ex1 |
2 |
| Producator |
GIGABYTE |
| Garantie |
36 |
